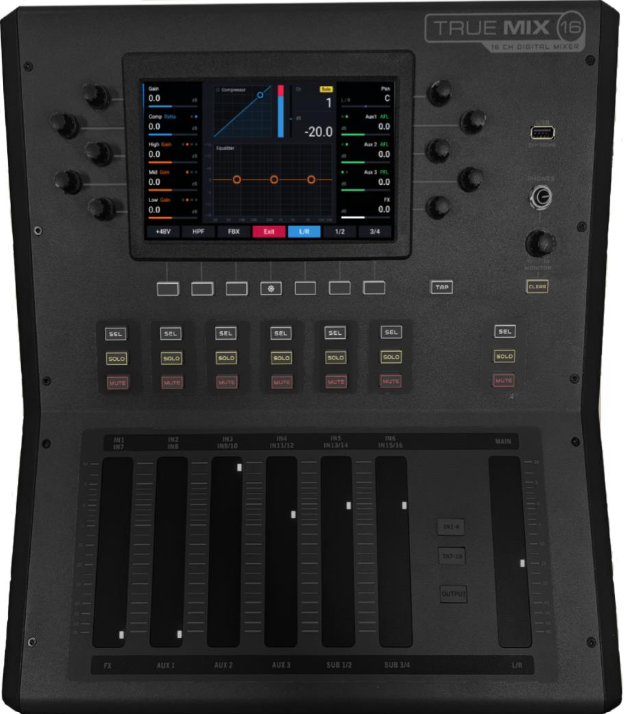

What is the TMD16?

The TMD16 is a 16 in x 12 out digital mixer for live sound, streaming, and more in a compact design with a durable metal chassis and capacitive touch faders. With powerful digital signal processing, a 7" Color display, and a simple control surface it is incredibly simple to use for audio engineers and novices alike.

What's in the box?

TMD16
Power Cable (6 ft. / 183 cm)
USB Cable (3 ft. / 91 cm)
Quickstart Guide
Safety & Warranty Manual

What are the dimensions of the TMD16?

The TMD16 features a compact footprint: 15.0” x 16.9” x 4.3” (38.1 cm x 42.9 cm x 10.92 cm)

What is the Weight?

The TMD16 weighs 10.3lbs (4.67kg)

What I/O does the TMD16 Feature?

8 XLR / 1/4" Combo Jack Inputs.
4 Hybrid Inputs (1 XLR + 2x 1/4")
2 Stereo Inputs
2 XLR Main Outputs
4 XLR Submix Outputs
3 XLR Aux Outputs
1 XLR FX Mix Out
2 1/4" Monitoring Outputs
Note: The monitoring volume knob below the headphone output will adjust the volume of both the headphone and 1/4" monitor outputs.
1 Stereo 1/4" Headphone Output
2x2 Audio Streaming via USB C or USB B Port
5v 500mA USB A port for charging

Other UI Features

7" color screen
10x 360-degree endless encoder knobs with push buttons to control the digital mixer functions associated with them in the UI
7x 100mm capacitive touch channel faders with LED ladder
7x channel select buttons
7x channel solo buttons
7x channel mute buttons
7x backlit function buttons to control situationally dependent
Delay Tap button for manually setting delay time
3-band EQ and Compressor on each input channel
1/4" TS footswitch jack to mute and unmute the FX Channel
iOS and Android app for recalling presets and adjusting levels
Ethernet port for remote control

Can I save Presets with the TMD16?

Yes, the TMD16 allows you to save presets.

To access presets, the user must go to the MAIN METERS OVERVIEW SCREEN and then press the center bottom button.

Presets will take a snapshot of all parameters of the mixer for easy recall. There is one factory preset which will return the mixer to factory settings and 9 user presets that can be saved, copied, and reloaded.

Does the TMD16 feature MIDI connectivity?

No, this device does not feature MIDI connectivity.

How does the mixer communicate with the App?

The app connects to the mixer via your device's Bluetooth connection.

What Effects does the TMD16 feature?

3-Band EQ with Hi/Low shelving per input channel
Compressor per input channel
7-Band Equalizer per output channel
Reverb
Delay
Chorus

Can I use this mixer as an Audio Interface?

Yes, the TMD16 can be used as a 2x2 Stereo USB Audio Interface @ 24-bit / 48kHz resolution.

Does the TMD16 support multitrack output over USB?

No, the TMD16 only supports 2 channels in and 2 channels out over USB when used as an audio interface.

Does the TMD16 require a Driver?

This device works as a class compliant audio interface with macOS. Windows users require a driver.

How do I download and install the driver?

1. Go to altoprofessional.com/products/tmd16 and download the latest TMD16 driver for your operating

system.

2. Open the file you downloaded and double-click the driver installer file.

3. Follow the on-screen instructions to install the drivers.

How do I set the TMD16 as my default audio device?

Windows 11:

1. Use the included USB cable to connect the TMD16 to your computer.

2. In the Taskbar, locate the Volume Control "speaker" icon. Right-click the speaker and open Sound

Settings > Sounds, then select More sound settings.

Alternatively, go to Start Menu > Settings (System) > Sound and then select More sound settings.

3. In the Windows Sound control panel select the Playback tab and select USB Audio Codec as the

default device.

4. Click the Recording tab and select USB Audio Codec as the default device.

5. Click Properties in the lower right-hand corner.

6. In the new window, click the Advanced tab and select 2-channel, 16-bit, 48000 Hz (Studio Quality) as

the default format.

7. Uncheck both boxes under Exclusive Mode.

8. Click OK to close the Properties window.

9. Click OK to close the Sound control panel.

macOS:

1. Use the included USB cable to connect the TMD16 to your computer.

2. Go to Applications > Utilities > Audio MIDI Setup.

3. In the Audio Devices window, select USB Audio Codec in the left column.

4. Right-click USB Audio Codec, and select Use this device for sound input.

5. Right-click USB Audio Codec, and select Use this device for sound output.

6. Quit Audio MIDI Setup.

What does the FX mix out do?

The FX output is a mix of all tracks assigned to FX sends.

What does the FBX button do?

The FBX button automatically eliminates microphone feedback.

Does the TMD16 feature Gates?

No, the TMD16 does not have built-in gates.

How do the touch faders work?

The 100mm capacitive touch faders are very responsive and feature an LED to indicate the current position. The only way to change the position is to touch the fader at that location; this prevents the chances of changing a level by accidentally touching a fader.

Can the TMD16 transmit Bluetooth?

While the TMD16 is equipped with Bluetooth, it can only be used to receive an audio signal, and/or send and receive information from the Alto App.
